SEWING UNDER GROUND


POWERFUL UNDERGROUND ACTUATOR
MODEL: UA Motor Rotational Speed:3500RPM 90 Degree Rotation Time: 10sec
Max. leaf's Weight:350 KG/Leaf Opening Degree: 0--180 Degree Temperature:- 25C----+50C
Max. leaf's Length:3.5 Meter/Leaf
Frame Housing: Aluminum Alloy

ACCESSORIES

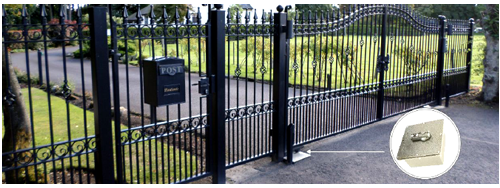

AUTOMATION FOR SWING GATES
A new brand in home automation, a new name among underground motor for swing gates. This products range, as complete as it is innovative, offers an extensive choice of solutions: from the 230V version, with slow or last movement, to the 24V version, Moreover. It guarantee all the quality of a state of the art design. all the duration.
Features:
Adjustable time of Last Speed GZ slow speed ( a2-A5/B2B5)
Adjustable of force during fast Speed & Slow Speed ( A6,A7,/ B6, B7)
Auto Close Function
Adjustable Closing Time Delay Motor with Electric Lock
Single & Dual Swing is Optional
Max Can up to 50 sets of remote controllers
Dc 24V backup battery ( optional )
Flashing light AC 220/110V & DC 24V ( Optional )
Optional Device: DC 24V gate lock, photocell, keypad, push button, extensional receiver box


Technical Specifications   Mechanical Specification
Electrical   Max. Leafs Weight 350KG/ Leaf
Main Supply Voltage 220V /110V AC Max. leafs Length 3 Meter / leaf
Operating Voltage DC 24V Frame Housing Aluminum Alloy
Electronic Controller Microcontroller Based Opening Degree 0 To 180 Degree
Safety Detection Over Current Detection 90 Degree Rotation Time 10 Seconds
Safety Barrier Infrared Beam Sensor ( Optional ) Temperature -25C - + 50C
IP Rating IP67 Clutch System Adjustable
