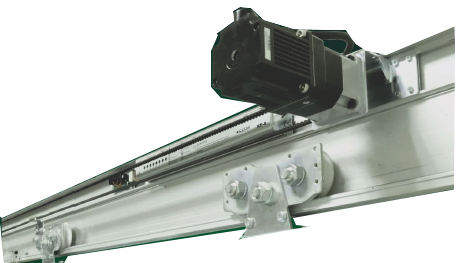

AUTOMATIC DOOR SYSTEM KF-HEAVY DUTY










FEATURES :
Install in factories, hospitals, airports, military bases and other high security areas to be protected.
Special tracks and wheels, carrying heavier and more stable.
Using a large radius of the pulley and greatly reduce noise and enhance the useful time.
Use good quality leather belt, scalability is small and not be effected by temperature, transmission efficiency.

Type

KF-8 Heavy Duty Door

Model Single-Winged     BI- Parting
Door Weigh 500KG X1 Door     400KG X 2 door
Door Width DW=500mm~6000mm DW=500mm ~ 6000mm
Install Way Surface Install              Surface Install
Motor DC 24V 120W Brushless Motor

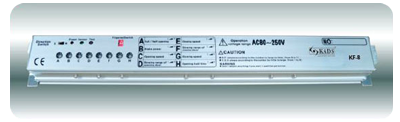

Control Micro- Controller
Power Consuption 120 W
Voltage

AC 80V ~250V

Enviroment Temperature

-20C + 50C

Volume

60 Decibel 9  9 (max)

Starting Speed

450mm/Second400mm/ Second

Starting Time

o~20 sec ( regulable)

Transmission Important Condition

Rack Belt 150 S8M

Opening Door range

Full / Half-Open

PFC Power Efficiency

0.95 ( AC100V Full Load )

Traction Force

When The Power Failure, The door Can Opened By Manual
